Product Overview

The SureShift 2 combines Formula 1 style multistage Shift Light display, Intelligent RPM Telltale and an ultra high accuracy tachometer in a single unique high performance system.

This light weight and easy to fit system is an ideal complement - or replacement - for conventional tachometers.

To see what the Shift Light looks like in use, click here (39k GIF)

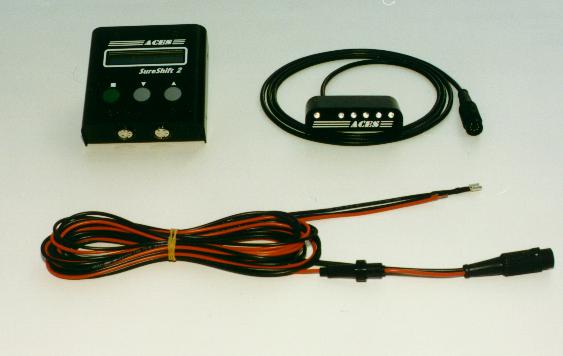

The SureShift 2 system comprises a Control module, Shift Light Display module, 3 metre wiring harness, fixing kit, user manual and quick reference guide.

[Contents] [Ordering]

Performance Benefits

• Five high intensity multistage Pre-shift and Shift-up warning lights give you the advance warning you need to accurately anticipate when to shift - not possible using a single stage shift light
• Flashing Lights at the shift point for maximum noticeability
• Shift down/ Low RPM light warns that you are losing performance because you are below the power band
• Configurable Shift Light brightness to prevent dazzle if racing at night
• Unique intelligent SmartMax RPM Telltale records true maximum rpm values, by ignoring momentary "glitches"
• Ultra high accuracy digital RPM readout can also be used as a tachometer for engine setup
• Extremely simple to set up using intuitive menus on the built-in LCD
• Automatic save, and simple recall, of the last 4 SmartMax RPM Telltale values
• Simple 3 wire "No hassle" hook up
• Non volatile memory means all settings and readings are saved even if power is removed
• Suitable for all conventional and MSD ignition systems, and 2 & 4 stroke engines (for CDI or Magneto systems, we can supply an HT Lead Sensor)
• Simple mounting requiring no drilling, cutting or fabrication

With the latest technology, the SureShift 2 uses multistage Pre-shift and Shift up lights to ensure the driver up shifts at the optimum RPM every change. The unit also incorporates a Shift down/Low RPM warning light to instantly indicate when the engine is out of the power band.

Unlike other Telltale devices, the SmartMax RPM differentiates between momentary over-revs as a result of a missed gear or downshift, and longer periods of over-rev. Both figures are recorded by the SmartMax system - providing vital data for driver, race engineer and engine builder alike.

The SmartMax RPM memory can be configured to only record the Maximum RPM when the engine is held at high RPM for a long period - for example in top gear on the longest straight, or when holding a gear through a specific section of the circuit.

Alternatively the SmartMax Telltale can be set to record shorter events to evaluate the driver's gear shifts - recording the Maximum RPM occurring when a shift is made.

Engine builders note that the Control Module can also be used as a standalone RPM recording device which will separate damaging over-rev events from momentary buzzes.

[Contents] [Ordering]

SmartMax - The intelligent RPM Telltale

Conventional Telltale devices only record the peak RPM that the ignition system generates. This means that downshifts, or even ignition problems such as points bounce can, and often do, record RPM values which are of little use.

The SmartMax memory only records a Maximum RPM value if the RPM has been above that value for a sample period determined by the user-selected 'SmartMax' filter. This configurability allows the user to set up the SmartMax to record specific engine data.

As an example the SmartMax can be set up to ignore short duration over revs occurring on a downshift or missed gear. However, the system will still record the absolute Peak RPM value for each run as this, with the SmartMax value, can provide vital data for more detailed analysis.

[Contents] [Ordering]

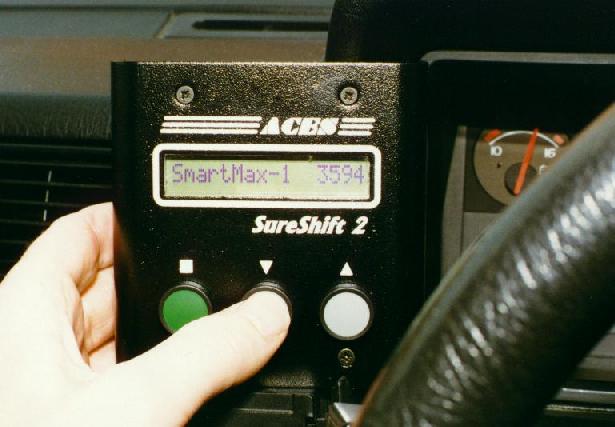

Control Module

	The control module integrates a 16 character LCD readout and key pad. Using the key pad the system can be easily configured with up to 6 different set up profiles.
Click on Image for larger view

In normal operation the Control Module provides a high accuracy readout of the current engine RPM and at the press of a key the Max. RPM values for the last run are recalled.

Using the keypad, the SmartMax RPM & Peak RPM for the last run can be displayed on the LCD. Max RPM values for the previous 3 saved runs can also be recalled at the press of a key.

The system can be programmed with 6 different configuration profiles to allow the user to quickly change between different vehicle or driver setups.

For each profile the following parameters can be set using the keypad:

• Shift down/ Low RPM level
• First Pre-shift warning level
• Shift RPM level. Intermediate shift light RPMs are set automatically at equal stages between the First Pre-shift and Shift RPM values.
• Number of Engine cylinders
• SmartMax filter value
• Flashing or constant LED illumination at shift RPM
• LED brightness (6 levels + off)

As the settings are stored in non volatile memory, the system will not lose its configuration profiles or Telltale readings when power is removed. The profiles and readings can therefore be changed or reviewed with the unit removed from the vehicle if required.

[Contents] [Ordering]

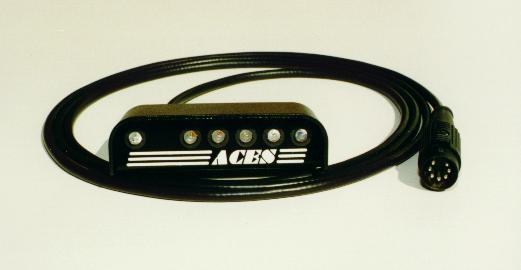

Shift Light Display Module

	The Shift light Display Module consists of 6 High Intensity LEDs. Five sequentially illuminated green, orange and red LEDs provide "Pre-Shift" and "Shift!" warning whilst the leftmost (orange) LED provides a "Shift down" alarm.
Click on Image for larger view

The leftmost (orange) LED provides a Low RPM Warning/ Shift Down alarm and and can also function as an Engine Running alarm.

The first green LED provides the first pre-shift warning indication. As RPM increases sequential green followed by orange and red LEDs illuminate.

The shift lights can be set up for any RPM range and if desired all can be programmed for the same RPM. Particularly for Drag racers the option of having a single shift warning may be of interest.

At the Shift RPM the shift light array can be set to flash rapidly, or to remain constantly illuminated.

To see what the Shift Light looks like in use, click here (39k GIF)

[Contents] [Ordering]

Installation Information

The modules are designed to be fixed using "Dual Lock^*" (supplied) and can be mounted on any relatively flat surface. This mounting method means that there is no drilling, cutting or fabrication required, and provides a strong fixing while still allowing the modules to be easily removed and refitted as often as required.

If the control module cannot be fitted in an easily viewed position, it can be located so that it can be removed for clear viewing when the vehicle is stationary.

Note: Although this system is designed for use in a racing environment, the control module should be installed so that it is not exposed to direct water spray.

^*Dual Lock is a registered Trade Mark of the 3M Company.
